Lamination Machines

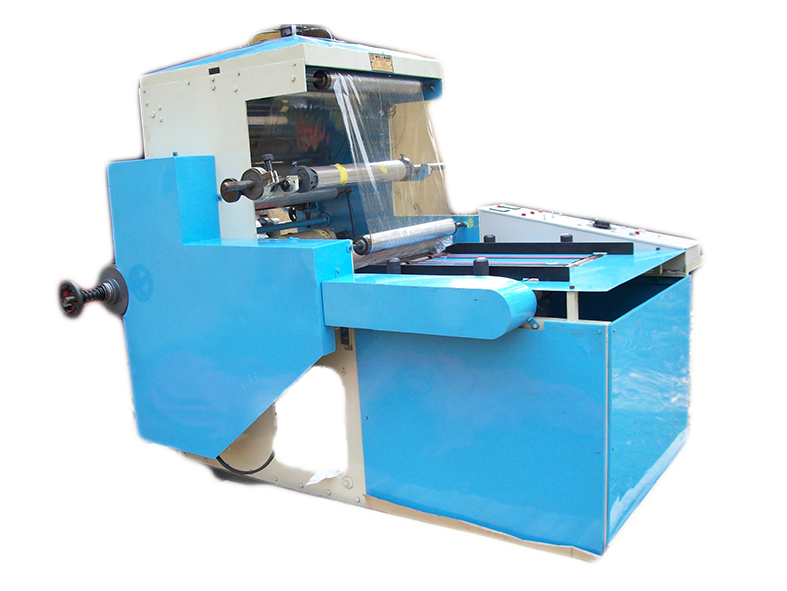

Providing you the best range of Dry or Wet Laminating Machines and Sheet Fed Lamination Machines with effective & timely delivery.

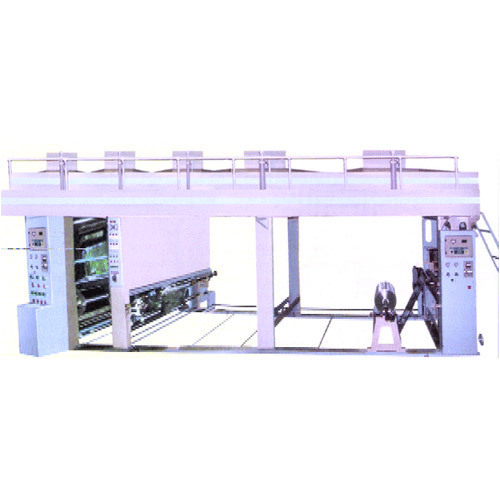

Dry or Wet Laminating Machines
- This machine is specially designed for laminating various combination of flexible substrates for packaging with minimum labour and time.
- Clutch operated unwind station is provided for regulating web tension.
- The Machine employs both "3Roll Coating System" and "Rotogravure Coating System" for alternate use, as per job requirement
- Optional Chilling unit may be provided for chilling of laminated substrate to the ambient condition for proper bonding of the laminates, mainly for metallised foils.
- Wrinkle removing traverse system are provided for wrinkle free lamination of the materials.
- Rewinding units employs slip type friction clutch for uniform tension rewinding of the web.
- Thermostatic digital temperature controller is provided with the machine for perfect lamination at varied ambient conditions at different seasons.
- The drying chamber employs forced hot air for complete drying of solvent on substrate and an exhaust system for driving moisture and air out of the drying chamber.
- Device for static discharge provided before rewinding of laminated substrate.
- Lamination machines may be fabricated exclusively as dry type or wet type or both as per the requirement of customer.
Specifications:
- Working Width
- a. Wet
- b. Dry
- Unwinding Roll dia(max)
- Rewinding Roll dia (max)
- Power Requirement
- a. Main machine drive
- b. Blower Load
- c. Exhaust Fan Load
- d. Heater Load
- 600 mm.
- 80-100 mts/min
- 60-80 mts/min
- 750 mm
- 750 mm
- 5 H.P
- 5 H.P
- 3 H.P
- 40 K.W.
- 1000 mm.
- 80-100 mts/min
- 60-80 mts/min
- 750 mm
- 750 mm
- 7 H.P
- 5 H.P
- 5 H.P
- 60 K.W.
