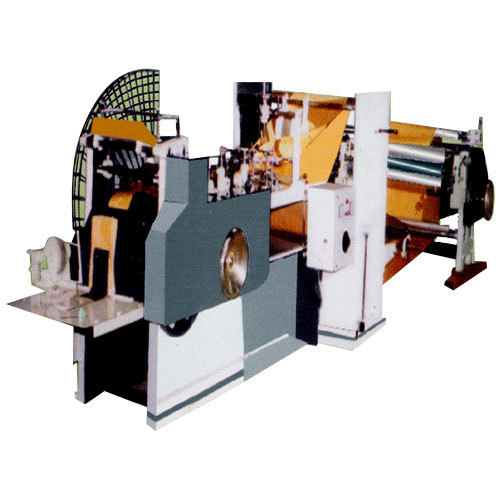

Paper Bag Making Machines

Product Details:

  • Capacity(Pieces per hour) : 80-100, 100-120

General Features:

  • The bags are manufactured from paper roll 30 gsm. to 170 gsm.
  • Machine with bi-color flexo printing and tube cutting arrangement.
  • Bags of different sizes can be manufactured by decreasing the maximum length at an interval of 1 cm.
  • Both flat and hatcheted type paper bags can be manufactured. 1. The bags are manufactured from paper roll 30 gsm. to 170 gsm.

Specification:

  • Printing width: 40"
  • Max. length of bag: 21"
  • Max. width of bag: 16"
  • "Production capacity"
  • Flat bag: 110 pcs. / min.
  • Satchel bag: 90 pcs. / min.
  • (Production depending upon size of Pcs.)
  • Motor required 3 hp / 2 hp DC/AC Motor-
  • With control panel box
  • space required 21' (Length) 10' (Width)
  • Printing width: 22"
  • Max. length of bag: 14"
  • Max. width of bag: 10"
  • "Production capacity"
  • Flat bag: 160 pcs. / min.
  • Satchel bag: 130 pcs. / min.
  • (Production depending upon size of Pcs.)
  • Motor required 2 hp DC/AC Motor-
  • With control panel box
  • space required 17.5' (Length) 8.5' (Width)

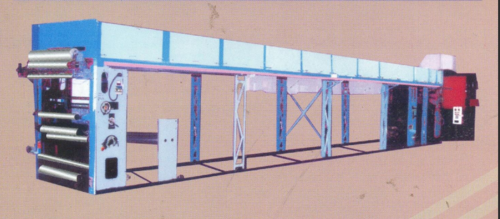

BOPP Self Adhesive Making Machines

Product Details:

  • Production Capacity : 15 - 20 meters / mm

General Features:

  1. The unwinding and rewinding stations are made up of cast iron connected to base channel and held with proper tie rods.
  2. The coating unit comprises of rubber rollers, drum rollers, others supporting rollers and equaliser rod to keep the coating of adhesive uniform throughout the process.
  3. Auto tension control through eddy current drive / mechanically wide brake and clutches at the unwinder and reminder.
  4. The drying chamber is 40 feet long, fully insulated. it is divided into 4 zones, heat provides by oil fired air heater.
  5. The hoods of the drying chamber are pneumatically operated for proper maintenance and operation.
  6. Main drive 5 hp. eddy current on unwinding & 3 hp. eddy current on rewinding.
  7. Sturdy catwalk with hand rails and ladder is provided with machine for overall maintenance and supervision of the machine.
  8. All the traction rollers are of aluminium t rust deposit.
  9. All rollers are dynamically balanced and connected with bearings.

Technical Specification:

  1. Web width: 1000 mm.
  2. Chamber heat: 150 degree centigrade (Max)
  3. Production capacity: 15 - 20 meters / mm.

Shrink Wrapping Machines

Shrink wrapping machines are also one of the most important machines which are counted first in the line of packing of the food materials and other chips items in the market. Our company is one of the most reliable and efficient company which are not only engaged in the manufacture of a wide range of packaging and printing machines but also are efficiently supplying it in different regions of the country and exporting to the other countries. Our shrink wrapping machines are available for our clients at a very conventional range of prices.

Features:

  1. Excellent performance
  2. Cost efficient
  3. Reliable and efficient
  4. Easily affordable
