Rotogravure Printing Machines

Prominent & Leading Manufacturer from Kolkata, we offer Multicolor Rotogravure Printing Machines and Rotogravure Printing Machines.

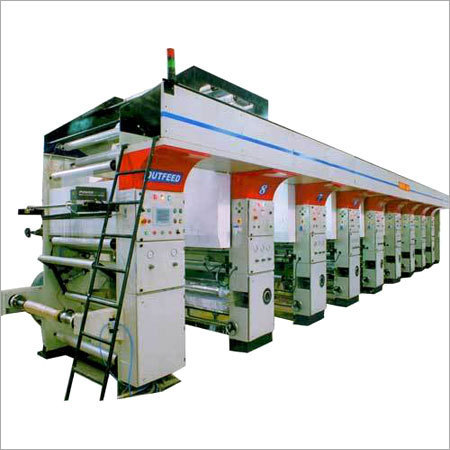

Multicolor Rotogravure Printing Machines

Product Details:

  • Max Speed : 100-150 m/min
  • Max Speed : 250-500 mm, 500-700 mm, 700-900 mm

Rotogravure Press is on excellent machine for continuous printing and mass production. It has been created to satisfy every present and future requirement of flexible packaging printers. Modulody designed, it can be easily retrofitted and re-equipped soas to keep abreast with technical and technological developments, thus offering considerable saving on investment. The machine offers opportunity of selecting a wide range of printing materials, viz. Polyethylene, Cellophane, Films, Popes Foils, etc.

Main Features:

  • High Efficiency
  • Low Initial Investment
  • Low Operating Cost
  • High Productivity
  • Good Reliability
  • Easy Operation and Contro

Design Specialities

  1. Tension Control - Uniform web tension maintained through Auto Tension Control device.
  2. Impression roller controlled pneumatically through Control Panel, either at each printing station or all station at a time.
  3. Doctor Blade is also pneumatically operated through Control Panel at each printing station.
  4. Web alignment uniformly maintained throughout the printing process by Web Aligner at both input and output points.
  5. Printed substrate +roughly dried during passage through Drying Chamber, regulated by temperature controller for different substrates.
  6. Drive through D.C. Motor and Thyristor Convertor control panel for speed regulation. Standard Working Details Maximum Web Width t 1000 mm Printing Cylinder Circumference Range ) (Repeat Lengh) 300 to 800 mm Maximum Machine Speed upto ) 150 Mts./min.

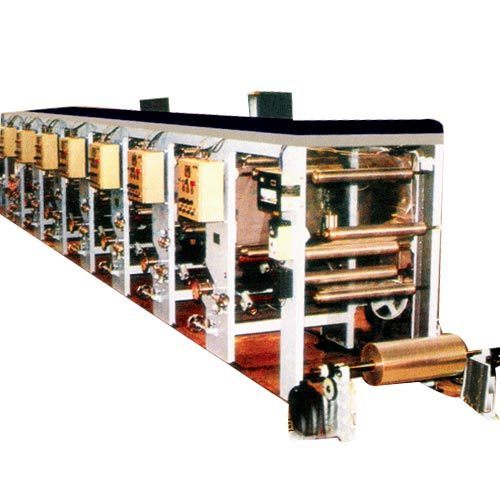

Rotogravure Printing Machines

Product Details:

  • Max Speed : 50-100 m/min, 100-150 m/min
  • Max Web Width : 250-500 mm, 500-700 mm, 700-900 mm

Rotogravure Press is an excellent machine for continuous printing and mass production. It has been created to satisfy every present and future requirement of flexible packaging printers. Modularity designed, it can be easily retrofitted and re-equipped so as to keep abreast with technical and technological developments, thus offering a considerable saving on investment. The machine offers opportunity of selecting a wide range of printing materials, viz. Polythene, Cellphone, Film, Paper, Foils, etc.

Main Features:

  • High Efficiency
  • Low Initial Investment
  • Low Operating Cost
  • High Productivity
  • Good Reliability
  • Easy Operation and Contro

Design Specialities

  1. Tension Control - Uniform web tension maintained through Auto Tension Control device.
  2. Impression roller controlled pneumatically through Control Panel, either at each printing station or all station at a time.
  3. Doctor Blade is also pneumatically operated through Control Panel at each printing station.
  4. Web alignment uniformly maintained throughout the printing process by Web Aligner at both input and output points.
  5. Printed substrate +roughly dried during passage through Drying Chamber, regulated by temperature controller for different substrates.
  6. Drive through D. C. Motor and Thyristor Converter control panel for speed regulation.

Standard Working Details:

  1. Maximum Web Width: 1000 mm
  2. Printing Cylinder Circumference Range: 300 to 800 mm
  3. Maximum Machine Speed upto: 150 Mtrs. / min.
